GSTARCAD 2016
CAD DESIGN ENHANCED
GSTARSOFT, A LEADING AND INNOVATIVE PROVIDER OF 2D/3D CAD SOFTWARE SOLUTION
USERS WILL TAKE FULL ADVANTAGE OF UNLIMITED DESIGN POSSIBILITIES WITH MORE VALUABLE NEW FEATURES, INCLUDING CLOUD STORAGE, BARCODE & QR CODE, PDF UNDERLAY .NET FRAMEWORK SUPPORT AND MANY MORE.
THE POWER OF ITS PERFORMANCE
THE PERFORMANCE PLAYS AN IMPORTANT ROLE IN EVERY GSTARCAD VERSION; THEREFORE, GSTARSOFT IS MAKING GREAT EFFORT IN PERFORMANCE OPTIMIZATION CONTINUOUSLY. ON GSTARCAD 2016, THE PERFORMANCE IS OBVIOUSLY ENHANCED IN MANY ASPECTS.

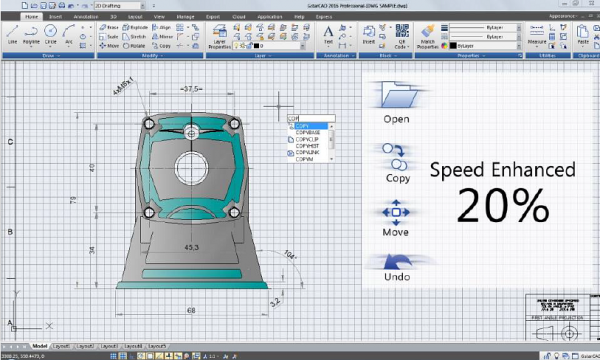

COMMON OPERATIONS PERFORMANCE OPTIMIZATION
Common operation tasks including open, copy, move, undo, the performance speed has been enhanced 20%, and users’ entire drawing efficiency can be improved by more than 10% if compared with the previous version.

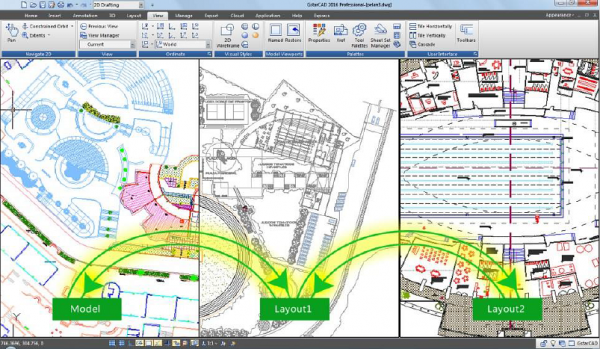

LAYOUT SPACE SWITCHING PERFORMANCE OPTIMIZATION
Many users got some time trouble when switching between model and layout space for big or complex drawings in previous versions.
Now GstarCAD 2016 focuses on layout space switching optimization, which reduces time considerably.
Especially when switching layouts over twice is even much faster than before..

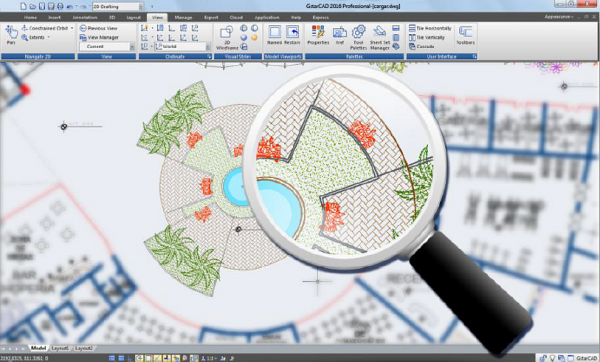

OBJECTS VISUALIZATION OPTIMIZATION
GstarCAD 2016 enhances object’s visualization and snaps points over these objects more accurately than previous versions.
For example, now when performing zoom in or zoom out, over the circle(s) or arc(s), no matter how many of those objects you have created, these will keep the same shape (no contour edges displayed); thus, you can snap points much accurately, enhancing drafting capability and better object visualization.
DGN COMPATIBILITY
Implemented the full dgn files support and related commands such as dgn-import, dgn-attach, dgn-adjust, dgn-mapping, etc.
Now, you can import and attach as underlay a Microstation native format.
SOLIDEDIT COMMAND OPTIONS IMPLEMENTATION
Now solid edit command supports related 3D solid editing options like imprint edges, color, and copy edges, extrude, move, offset, delete, rotate, taper, color, and copy faces.
NEW VISUALS IN DYNAMIC INPUT
The traditional dynamic input has been improved, so now the dynamic input achieves the command line integration which means a great benefit by gaining more workspace and fewer eyes concentration.
Now the dynamic input in GstarCAD 2016 displays all options of command and could select them in different methods. users no longer need the command line either floated or docked, gaining more workspace to get wider viewing of the drawing, and most important, users will focus directly at the right spot of the drawing avoiding eyes concentration at the command line.
AUTO COMPLETE COMMAND ENTRY ENHANCEMENT
In addition to dynamic input enhancement, the autocomplete command entry has a light enhancement regarding the command icon display.
When type a command using the dynamic input, it displays a list of all the commands whose prefix matches what you’ve typed, plus it will display all their icons, making it easier to recognize them at a glance.

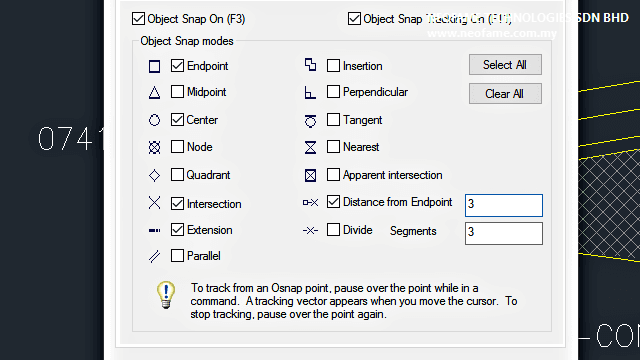

OBJECT SNAP OPTIONS ADDED
Within the object snap tab, you can find a newly added option called distance from the endpoint. This option allows snapping a certain distance from any endpoint of objects like line, arc, spline, polyline, ellipse arc, multi-line, and any other lines. As long as you pass the cursor over an object from its endpoints, you will see a green snap point at an accurate distance.
And within the object snap tab, you can find a newly added option called divide segments. This option allows snapping the divided segment points of objects like line, arc, spline, polyline, ellipse arc, multi-line, and any other lines. Before finding the dividing point, you need to generate the divided points object and then snap those points to draw. As long as you pass the cursor over an object mentioned above, you will see a green snap point at an accurate distance.

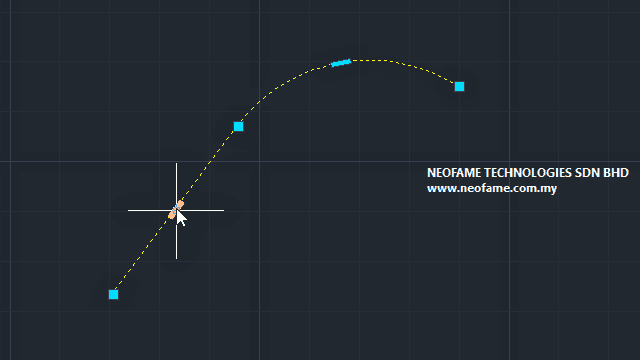

OBJECT GRIP EDITION
(POLYLINE ENHANCEMENT)
Polyline objects in GstarCAD 2016 now support multifunctional options. The available functions (stretch, add a vertex, and convert to arc) can be seen by hovering over a grip, and you can choose an option directly from the context menu that appears.
In addition, you can cycle through the available functions by pressing ctrl or choosing one of the options from the right‐click menu. Icons next to the cursor indicate the active function.
FILLET COMMAND ENHANCEMENT
Invert fillet has an extensive range of usage, particularly in the construction and furniture industry. Therefore, the fillet command now offers a new option called invert. You can create a reverse fillet with this option.
MEASUREGEOM COMMAND ENHANCEMENT
Measuregeom command is more powerful in GstarCAD 2016, not only adds the missing options such as to measure the radius, measure angle, and measure volume and sum area and total length.

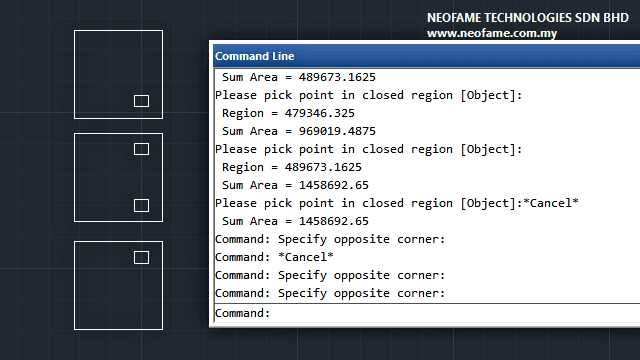

SUM AREA: Not only can it calculate the area of a closed object, but it also can calculate a closed region area. If multiple objects need to be selected, window selection is available.

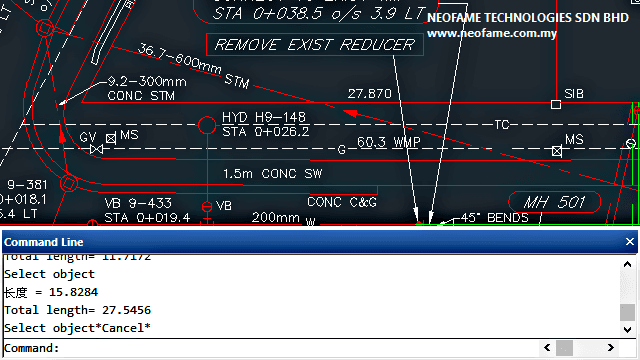

TOTAL LENGTH: Calculates the object length and total length associated with selected arc, circle, polyline segments, or line objects. You can either select the single object by click or select multiple objects with window selection.

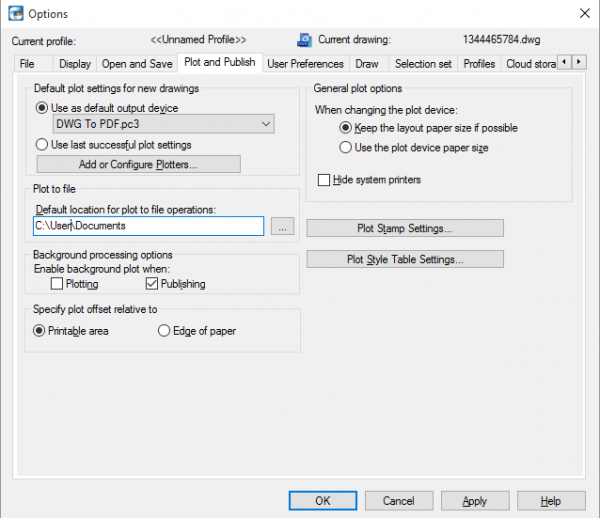

OPTIONS DIALOG BOX (PLOT AND PUBLISH TAB ADDITION)
Now the options dialog box supports a new tab (plot and publish). this tab helps users to control options related to plotting and publishing.
